Products

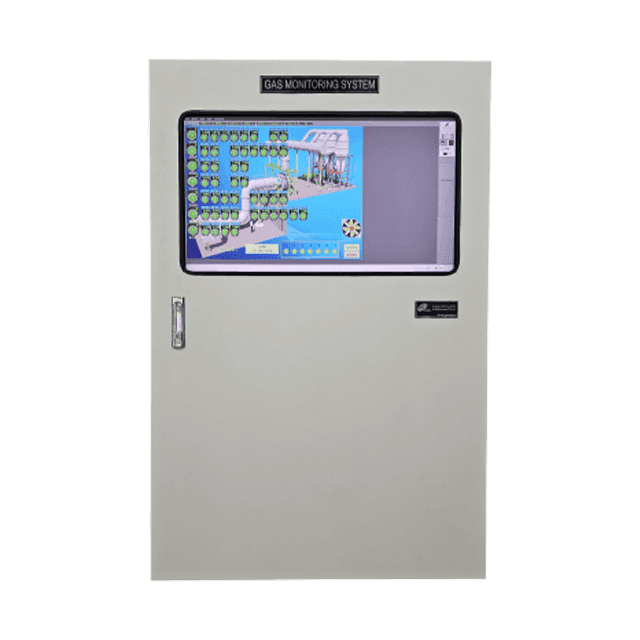

GRD-5000/HMI
Multi-Channel (Max. 32 Channels)
Features
- Remote Monitoring of Multiple Gas Detectors
- Convenient Operation Through Large Display
- Ethernet Network Connectivity (Optional)
- Real-Time Alerts via Smartphone Notifications
- Sensor Management and History Storage/Retrieval
- Intuitive and Simple User Interface
Specifications
- Supports Wireless Communication: Zigbee, LoRa, WiFi, LTE Cat 1
- Supports Wired Communication: RS-485 Modbus, USB
- Data Conversion/Input & Output, Logger Data Storage
- Connector: LAN (RJ45), RS-485, I/O Expansion Connector
- Real-Time Data Monitoring and Control
- System Status and Alarm Management
- Android MQTT & SMS Alert System
- AWS Database Server Deployment
| Number of Channels | Up to 32 Channels with 4 Sub-Modules (8 Channels Per Module) |
|---|---|
| Display Device | Full-Color TFT LCD with Resistive Touchscreen |
| Alarm Device | Buzzer (90dB at 1m), Visual Alarm, and External Speaker (Optional) |
| Input Signal | 4-20mA |
| Output Signal | 4-20mA, RS-485 Modbus, Dry Contact |
| Input Power | AC 220V |
| Operating Power | DC 24V |
| Operating Temperature | -20 to 40℃ |
| Operating Humidity | 0 ~ 95% RH |
