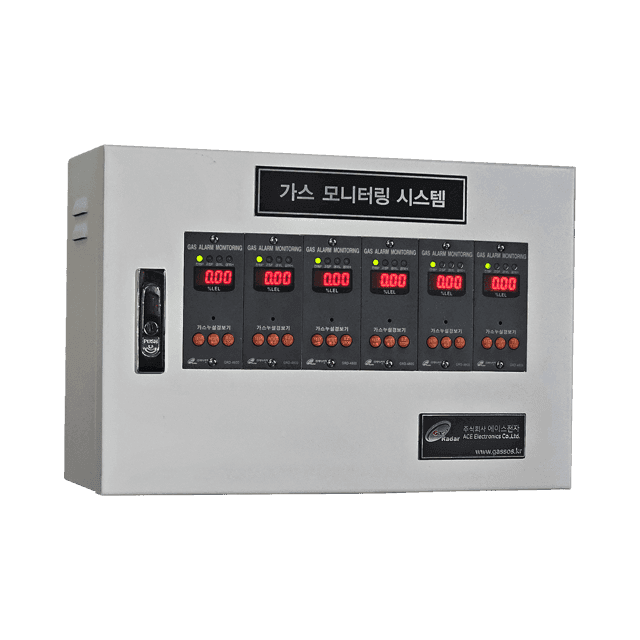

GRD-4800
Multi-Channel (Expandable from 2 to N Channels)
Features
- Multi-Channel Gas Detector Receiver Panel Expandable to Dozens of Channels
- Integrated Structure of Concentration Indicator & Alarm Unit
- Configurable Alarm Threshold and Operating Range via Microprocessor
- Supports Various Output Methods (4~20mA, Dry Contact, DC Voltage) for Easy Integration with External Devices
Catalog
Specifications
| Product Structure | Panel Expandable Type | |
|---|---|---|
| Detector Connection | 2 to N Circuits (Multi-Channel) | |
| Display Screen | Measurement Display | 4-Digit FND (% LEL, VOL%, PPM) |
| Operation Display | Alarm L·H (Yellow), Fault (Red), Power (Green) | |
| Alarm Output | 2-Alarm Lamp & Buzzer (75dB/1m) | |
| Input Signal | 4-20mA DC | |
| Output Signal | Relay Contact Output 4-20mA, DC 12V | |
| Alarm Response Time | Within 45 Seconds, 90% / Full Scale | |
| Operating Voltage | AC 220V 50/60Hz | |
| Backup Power Supply | Ni-Cd Battery or UPS Device (Optional) | |
| Operating Temperature & Humidity | -20 ~ +40℃, 0 ~ 95% RH | |
| Enclosure Material | SPCC 1.6t | |
| Dimensions | Receiver Unit: 48(W) × 106(H) × 47(D) mm Enclosure: Varies Depending on the Number of Channels | |
