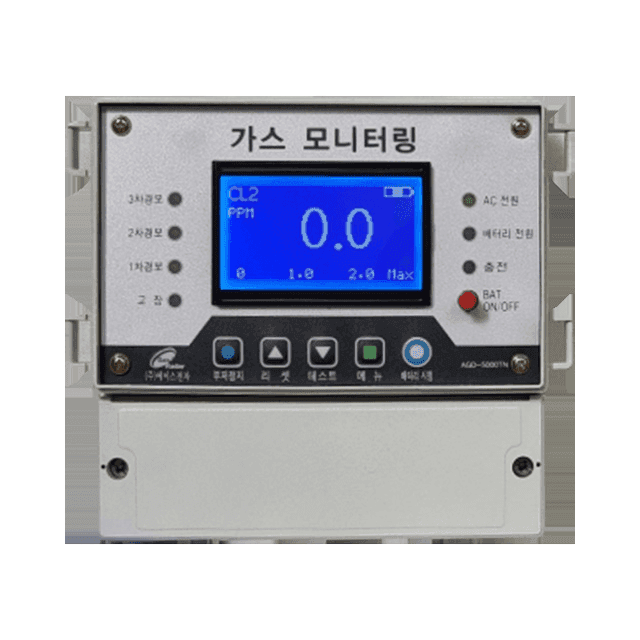

The AGR-5000TN Gas Control Panel features a non-corrosive, dust-proof structure made of polycarbonate. It is a gas monitoring system capable of displaying measured values and providing voice output for toxic and combustible gases used or generated at various industrial sites.
| Installation Method | Wall mounting type | |
|---|---|---|
| Channel | 1 Channel (Single Channel) | |
| Display | Measuring Display | 3.4 inch LCD |
| Operating Display | Alarm 1, 2, 3 (Yellow), Trouble (Red) | |
| Alarm Signal | 3-Alarm Lamp & Buzzer (75dB/1m) | |
| Reponse Time | Within 45 sec (90% of Full scale) Within 30 sec (90% of Full scale)_Combustible | |
| Setting Range | 0~N ppm (Toxic Gas) 0~100 % LEL (Combustible Gas) 0~30 vol % (Oxygen) | |
| Function | Self Test, Span/Zero set, Reset | |
| Input Signal | 4-20 mA DC | |
| Out Signal | 4~20mA, Relay contact RS-485 MODBUS (OPTION) | |
| Main Power | AC 220V 50/60 Hz | |
| Operating Power | DC 24 V | |
| Voice Output | Rated 2 W | |
| Extra Battery | Ni-Cd Battery | |
| Operation Temperature | -20~60 ℃ | |
| Operation Humidity | 5~99% RH (Non-condensing) | |
| Body material | Polycarbonate (PC) | |
| Dimension | 188(W) x 160(H) x 134(D) mm | |
