The AGD-4200L Integrated Gas Detector detects leaks of toxic and combustible gases used or generated at various industrial sites and displays the measured values on-site. With its diverse output options, it enables the implementation of an integrated gas monitoring system. It is a field-indicating type gas detector.
| Measuring Gas | Oxygen (O₂) Toxic Gas (CO, CO₂, NH₃, etc.) Combustible Gas (H₂, CH₄, etc.) | |
|---|---|---|
| Channel | 1 Channel (Single Channel) | |
| Measuring Method | Electro-Chemical Catalytic Cell NDIR, PID (Photo-Ionization) | |
| Measuring Type | Diffusion Type | |
| Display | Measuring Display | 7 inch LCD |
| Operating Display | MENU, ALARM 1, ALARM 2 TEST, RESET, BZ/STOP | |
| Alarm Signal | 3-Alarm Lamp & Buzzer (75dB/1m) | |
| Reponse Time | Within 45 sec (90% of Full scale) Within 30 sec (90% of Full scale)_Combustible | |
| Accuracy | ≤ ±3% / Full Range | |
| Contact Capacity | AC250V 1A / DC 24V 3A | |
| Setting Range | 0~N ppm (Toxic Gas) 0~100 % LEL (Combustible Gas) 0~30 vol % (Oxygen) | |
| Function | Self Test, Span/Zero set, Reset | |
| Input Signal | 4-20 mA DC | |
| Out Signal | 4~20mA, Relay contact DC 12V voltage output RS-485 MODBUS (OPTION) | |
| Main Power | AC 220V 50/60 Hz | |
| Operating Power | DC 24 V | |
| Operation Temperature/Humidity | -20~60 ℃ / 5~99% RH | |
| Extra Battery | Ni-Cd Battery (OPTION) | |
| Body material | Polycarbonate (PC) | |
| Dimension | 235(W) x 185(H) x 120(D) mm | |

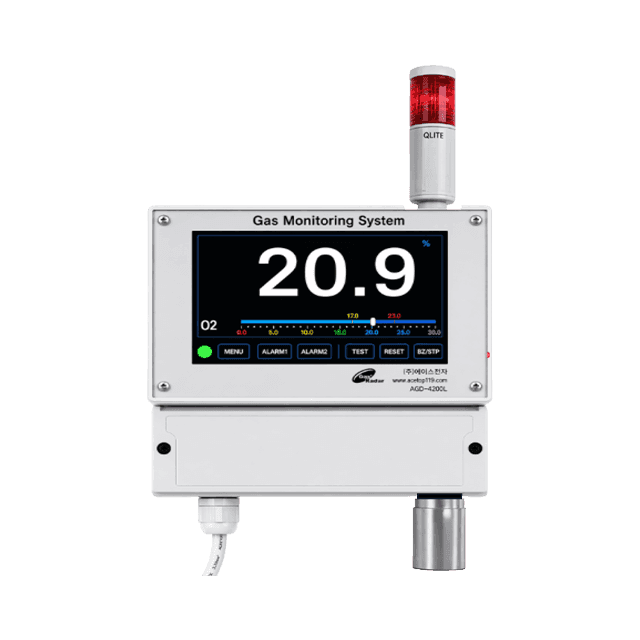

* The warning light (tower lamp) is an optional item, and the actual product may differ from the photograph.
