Products

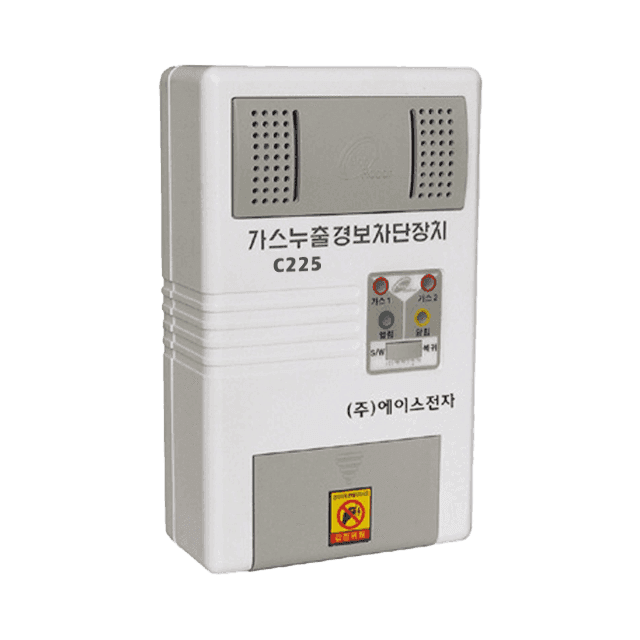

GRC-225
2 Circuits
Features
- Remote Open/Close Control of Gas Shutoff Valve and Automatic Shutdown During Gas Leakage
Specifications
| Number of Circuits | 2 Circuit Controllers |
|---|---|
| Number of Connected Detectors | 2 Gas Detectors (GRD-1000) |
| Alarm Signal | Gas1, Gas2 Red Lamp and Buzzer |
| Shutoff Device | GRV-1525 (15A, 20A, 25A) |
| Shutoff Time | Approx. 15 Seconds |
| Power Consumption | 4W (Normal), 9W (Operation) |
| Power Supply | AC 220V 50/60Hz |
| Output Voltage | DC 12V Out |
| Operating Temperature | -20 to 40℃ |
| Weight | 370g |
| Dimensions | 85(W) × 140(H) × 40(D) mm |
