Products

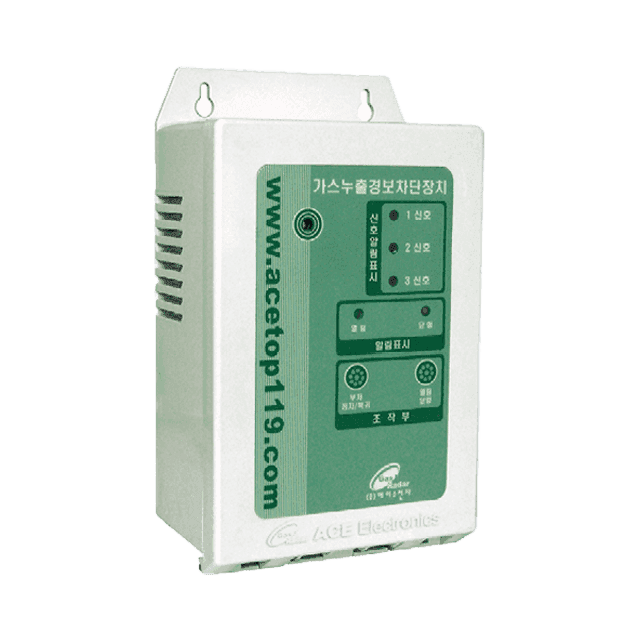

GRC-3265
3 Circuits
Features

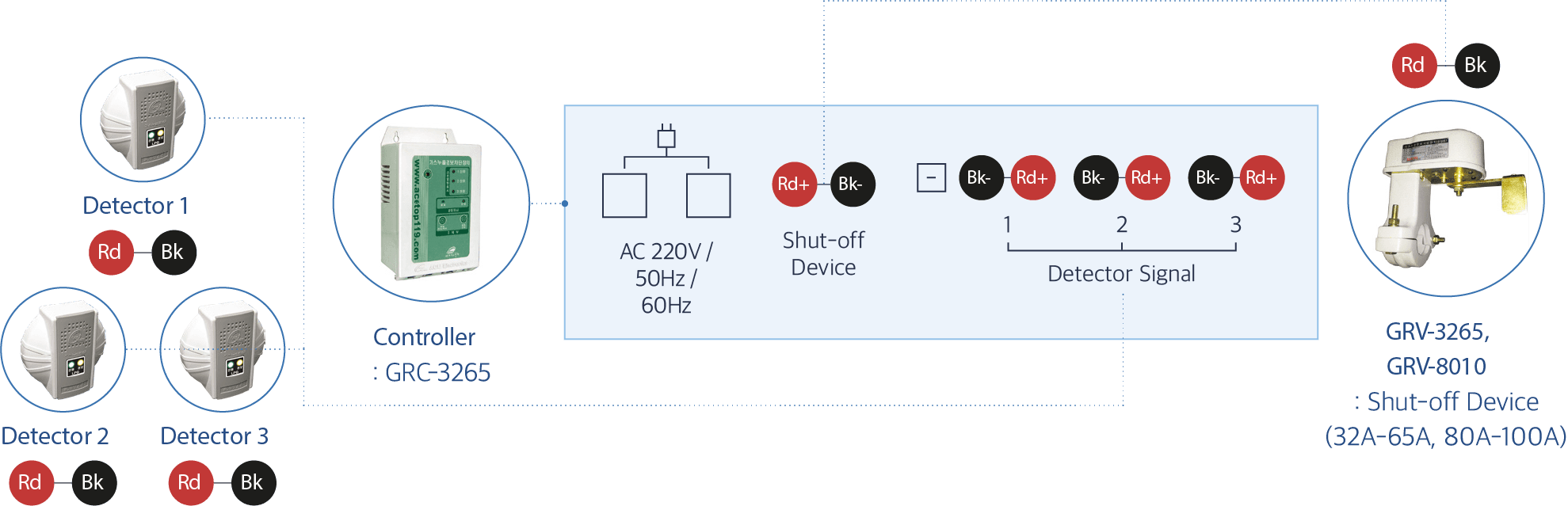

- Remote Open/Close Control of Gas Shutoff Valve and Automatic Shutdown During Gas Leakage
Specifications
| Number of Circuits | 3 Circuit Controllers |
|---|---|
| Alarm Signal | Gas1, Gas2, Gas3 Red Lamp and Buzzer |
| Shutoff Device | GRV-3265 (32A, 40A, 50A, 65A) |
| Shutoff Time | Approx. 15 Seconds |
| Power Consumption | 3W (Normal), 8W (Operation) |
| Power Supply | AC 220V 50/60Hz |
| Input Voltage | DC 5-12V |
| Output Voltage | DC 12V Out |
| Operating Temperature | -20 to 40℃ |
| Weight | 1 kg |
| Dimensions | 138(W) × 235(H) × 80(D) mm |
