Products
LNG
LPG

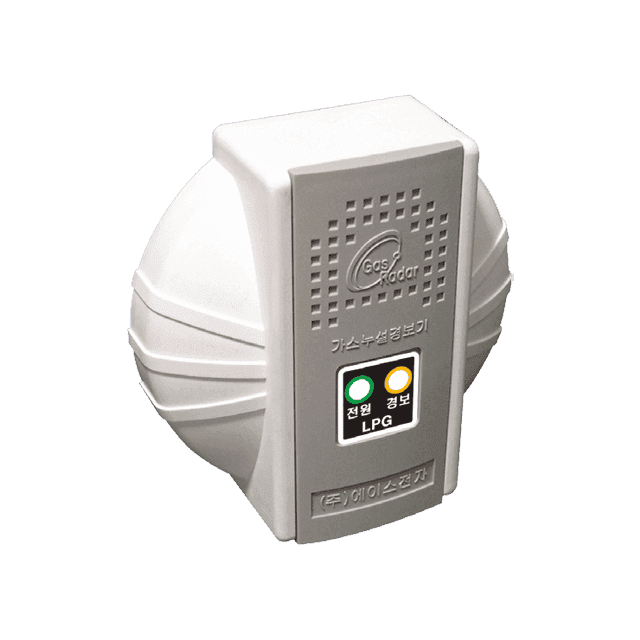

GRD-1000
Household Use · Waterproof Type
Features
  • When a Gas Leak is Detected, Receives a Signal from the Controller to Shut Off the Gas Valve
Specifications
Target GasLNG (Natural Gas), LPG (LP Propane, Butane)
Detection MethodCatalytic Combustion, Diffusion Type
Alarm Concentration20% LEL
Response TimeWithin 20 Seconds of Detection
Operating Temperature Range-20 to 40℃
Power Consumption1.2W
Power SupplyDC 12-15V
Alarm IndicationYellow Lamp & Buzzer Sound (70dB at 1m)
Output VoltageDC 7V Out
Weight104g
Dimensions75(W) × 75(H) × 40(D) mm
Compatible ProductsGRC-1525, GRV-1525 (15A, 20A, 25A, 32A, 40A, 50A, 65A, 80A, 100A)
