LED Display Monitoring
LED Display Monitoring
Features

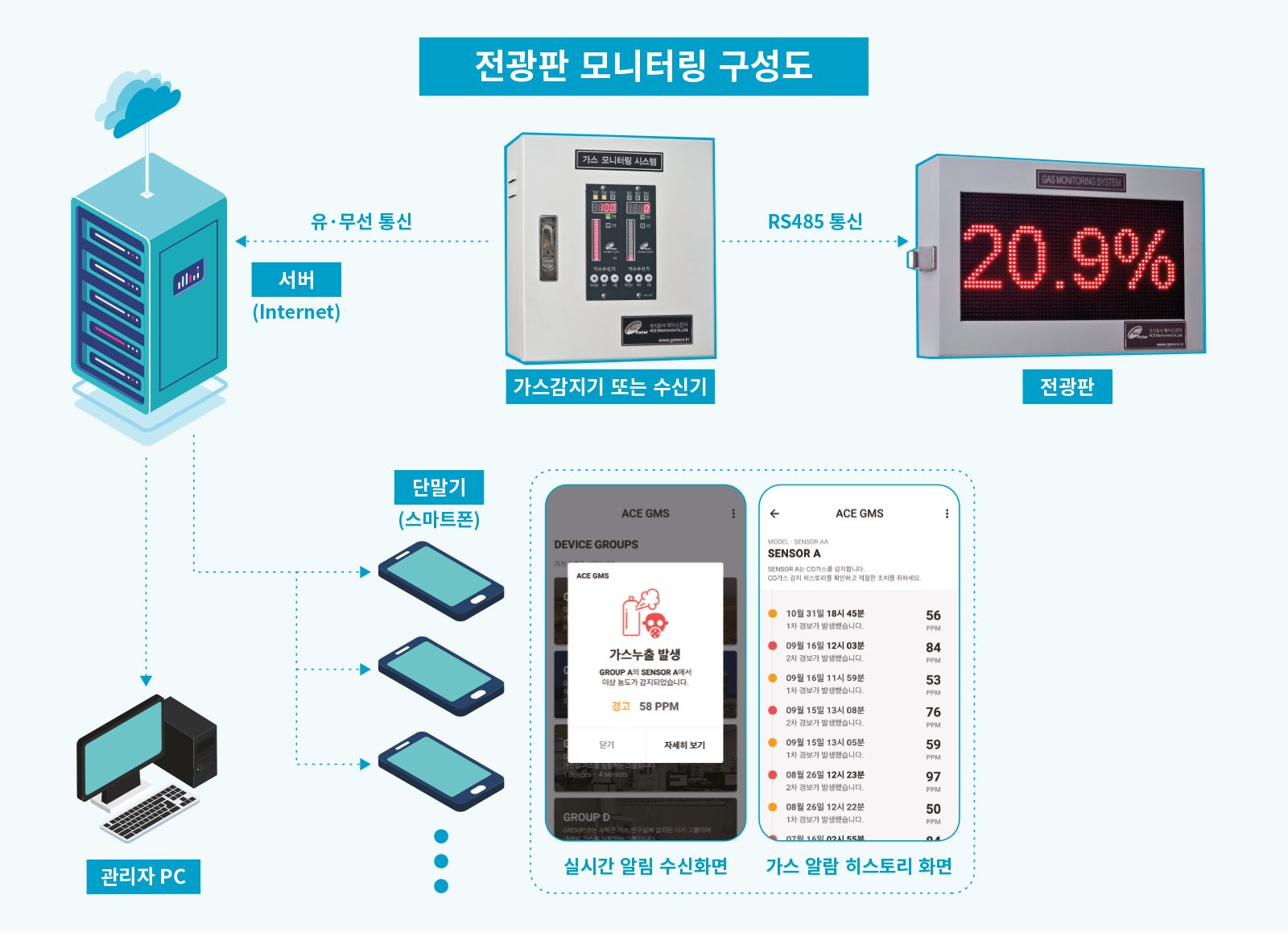

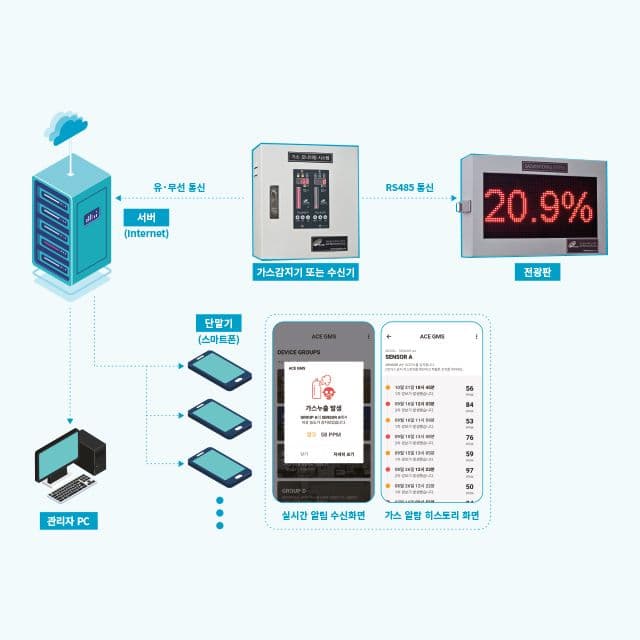

Our gas detectors or receivers are connected via RS-485 Communication to display real-time gas leaks and alarm statuses on a large display, maximizing visibility. This system is designed to be installed in various industrial sites, allowing for easy recognition of situations even from a distance.

Additionally, it features a built-in Wi-Fi module for internet connectivity, and by installing our dedicated app, monitoring is also possible through a smartphone.

Specifications
Display ItemsTarget Gas Name, Real-Time Concentration, Status Indicator
Display Size320 × 160 mm
Resolution64 × 32 Dots
Display ColorRGB Full Color
Brightness

Indoor: 800 ~ 1,200 cd

Outdoor: ≥ 5,000 cd/㎡

Installation LocationIndoor and Outdoor, IP65 (Optional)
Application AreasChemical Plants, Plants, Laboratories, Safety Zones
Viewing Angle: Horizontal: 160° / Vertical160°
Rated VoltageAC 220V, 50/60Hz
Operating Temperature Range-20℃ ~ +60℃
Optimal Viewing Distance≥ 5m
Communication with Gas Detector or ReceiverRS485 MODBUS
Internet ConnectivityBuilt-in WiFi Module
Dimensions320 × 160 × 85 mm
Large Billboard DisplayCustom Order / Optional
