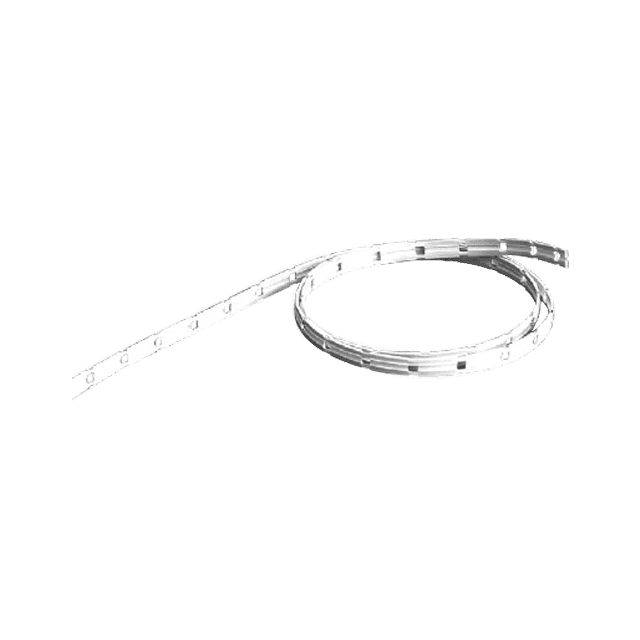

ALD-0316PE
Reed Sensor
Features
  • Ribbon-Type Sensor for Installation Around Facilities Prone to Leaks (Data Centers, Semiconductor Plants, etc.)
  • Capable of Detecting All Conductive Liquids
  • Sensing Tape in Contact with Leaked Liquid Can Be Washed and Reused
  • Maximum Length of 100M (1 Roll), Can Be Cut and Bent According to Installation Requirements
Specifications
Target SubstanceWater, Conductive Liquid Solutions
Detection MethodInter-Electrode Resistance Detection
Operating VoltageDC 24V
Response TimeWithin 5 Seconds
ReusabilityReusable
Operating Temperature-15 to 55℃
Dimensions8(W) × 1.7(H) mm
Material

Insulation Coating: PE

Electrode: SUS316

WeightApprox. 16g (Per 1m)
